LAB 5

Today’s lab will be about self joins and provide a brief introduction to Flask

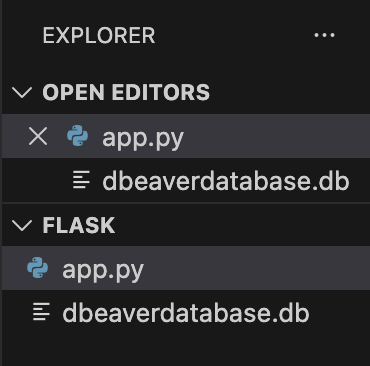

Let’s not beat around the bush, and go straight to the point. We can use the same folder subqueries that we used in the previous lab. We only need to delete the csv files, and it will be ready to go. Alternatively, we can create a new folder named flask and move the existing database dbeaverdatabase.db into that folder, and create a new p=Python file called app.py

To recreate the table on page 59 of the book, use the following SQL script. If you forgot how to create a new table in DBeaver, check out Lab2.

PRAGMA foreign_keys = ON;

DROP TABLE IF EXISTS Member;

CREATE TABLE Member (
MemberID   INTEGER PRIMARY KEY,
LastName   TEXT NOT NULL,
FirstName  TEXT NOT NULL,
Handicap   INTEGER,
MemberType TEXT,
Gender     TEXT,
Coach      INTEGER,
FOREIGN KEY (Coach) REFERENCES Member(MemberID)
);

INSERT INTO Member (MemberID, LastName, FirstName, Handicap, MemberType, Gender, Coach) VALUES
(118, 'McKenzie', 'Melissa', 30, 'Junior', 'F', 153),
(138, 'Stone', 'Michael', 30, 'Senior', 'M', NULL),
(153, 'Nolan', 'Brenda', 11, 'Senior', 'F', NULL),
(176, 'Branch', 'Helen', NULL, 'Social', 'F', NULL),
(178, 'Beck', 'Sarah', NULL, 'Social', 'F', NULL),
(228, 'Burton', 'Sandra', 26, 'Junior', 'F', 153),
(235, 'Cooper', 'William', 14, 'Senior', 'M', 153),
(239, 'Spence', 'Thomas', 10, 'Senior', 'M', NULL),
(258, 'Olson', 'Barbara', 16, 'Senior', 'F', NULL),
(286, 'Pollard', 'Robert', 19, 'Junior', 'M', 235),
(290, 'Sexton', 'Thomas', 26, 'Senior', 'M', 235),
(323, 'Wilcox', 'Daniel', 3, 'Senior', 'M', NULL),
(331, 'Schmidt', 'Thomas', 25, 'Senior', 'M', 153),
(332, 'Bridges', 'Deborah', 12, 'Senior', 'F', 235),
(339, 'Young', 'Betty', 21, 'Senior', 'F', NULL),
(414, 'Gilmore', 'Jane', 5, 'Junior', 'F', 153),
(415, 'Taylor', 'William', 7, 'Senior', 'M', 235),
(461, 'Reed', 'Robert', 3, 'Senior', 'M', 235),
(469, 'Willis', 'Carolyn', 29, 'Junior', 'F', NULL),
(487, 'Kent', 'Susan', NULL, 'Social', 'F', NULL);

Self join

Self joins are Cartesian product (every combination of rows from each table) followed by selecting a subset of those rows that satisfy some join condition.

So when we run

SELECT *
FROM Member m INNER JOIN Member c ON m.Coach = c.MemberID;

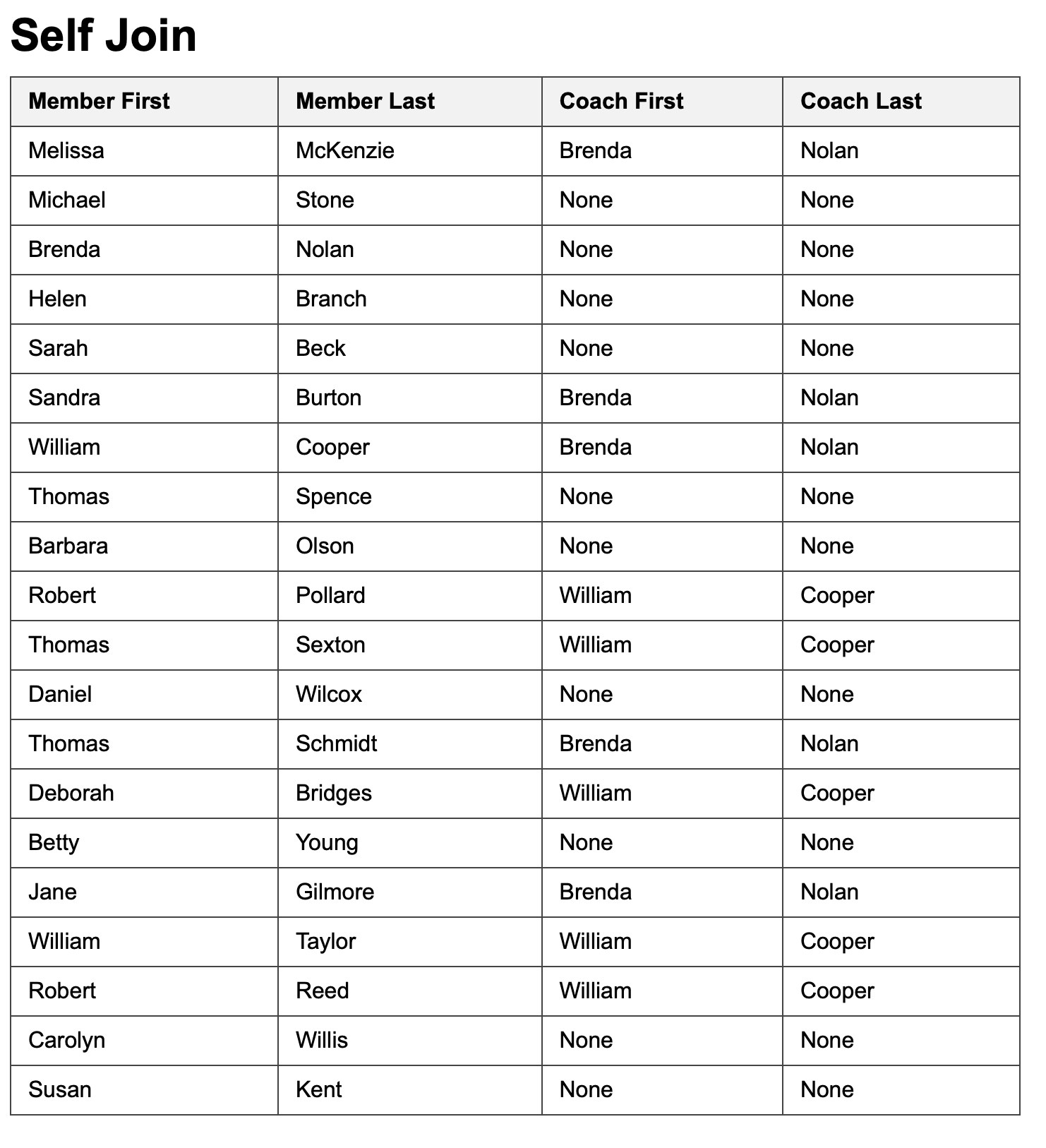

this is part of the Cartesian product that we are doing

The join condition m.Coach = c.MemberID then filters this result, keeping only the rows where a member’s coach matches another member’s MemberID:

Since we are only interested in the first and last names of the coaches, we select only those columns. We also apply DISTINCT to avoid duplicate results:

SELECT DISTINCT c.FirstName, c.LastName
FROM Member m INNER JOIN Member c ON m.Coach = c.MemberID;

This is the result we see in DBeaver

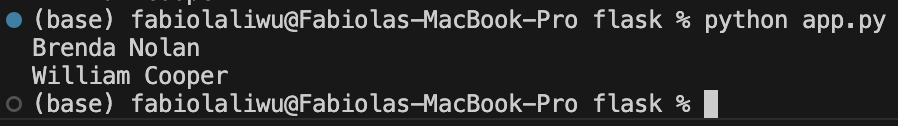

And this is the result we see when running the same query in Python from the terminal

import sqlite3

conn = sqlite3.connect("dbeaverdatabase.db")
cur = conn.cursor()

cur.execute("""
SELECT DISTINCT c.FirstName, c.LastName
FROM Member m INNER JOIN Member c ON m.Coach = c.MemberID;
""")

rows = cur.fetchall()
for first, last in rows:
print(f"{first} {last}")

conn.close()

Flask

In real applications, we don’t just do queries in database tools like DBeaver or in the terminal. While running SQL directly is useful for learning and testing, most real-world applications access databases through code and display results in a user-friendly interface. Therefore, in this lab we will have a brief introduction to Flask. Flask acts as a simple bridge between the database and the user interface. It lets us take the results of a self join query and present them in a formatted web page.

Installing flask

In the terminal, type the foolowing command

python -m pip install flask

Creating a Flask application

Let’s create a Python file app.py in the same folder as the database. This Flask application connects to the database, runs the same self join query we tested earlier, and sends the results to an HTML template.

import os
import sqlite3
from flask import Flask, render_template

app = Flask(__name__) # start the app

BASE_DIR = os.path.dirname(os.path.abspath(__file__))
DB_PATH = os.path.join(BASE_DIR, "dbeaverdatabase.db")

@app.route("/") #run the following when the useer is in the home page
def selfjoin():
# coonect it to the database
with sqlite3.connect(DB_PATH) as conn:
        conn.row_factory = sqlite3.Row
        cur = conn.cursor()
        #execute query
        cur.execute("""
        SELECT DISTINCT c.FirstName, c.LastName
        FROM Member m INNER JOIN Member c ON m.Coach = c.MemberID;
        """)
        rows = cur.fetchall() #fetch the data
# returns the data to the template
return render_template("selfjoin.html", rows=rows)

#starts the Flask web server in debug mode
if __name__ == "__main__":
app.run(debug=True)

Create the templates folder

In the same folder, create a new folder called templates. Inside templates, create a file called selfjoin.html.

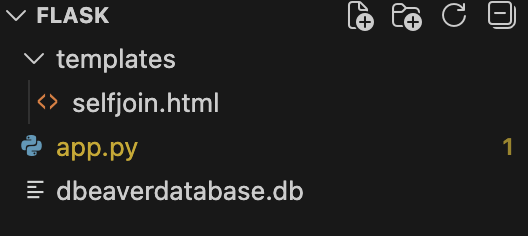

The folder structure should look like this:

The template receives the result of the self join and displays each coach’s name in a list. In selfjoin.html, add the following

<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="UTF-8">
<title>Lab 5</title>
<style>
        body {
        font-family: Arial, sans-serif;
        margin: 40px;
        }

        h1 {
        margin-bottom: 10px;
        }

        table {
        border-collapse: collapse;
        width: 50%;
        }

        th, td {
        border: 1px solid #444;
        padding: 8px 12px;
        text-align: left;
        }

        th {
        background-color: #f2f2f2;
        }
</style>
</head>
<body>
<h1>Self Join</h1>
<table>
        <tr>
        <th>First Name</th>
        <th>Last Name</th>
        </tr>


</table>
</body>
</html>

In the terminal, run the following

python app.py

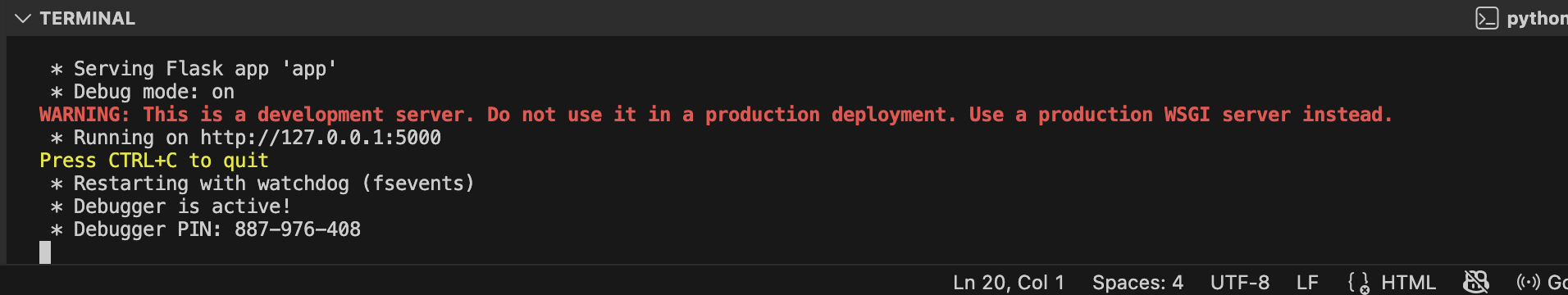

You will see the following output in the terminal

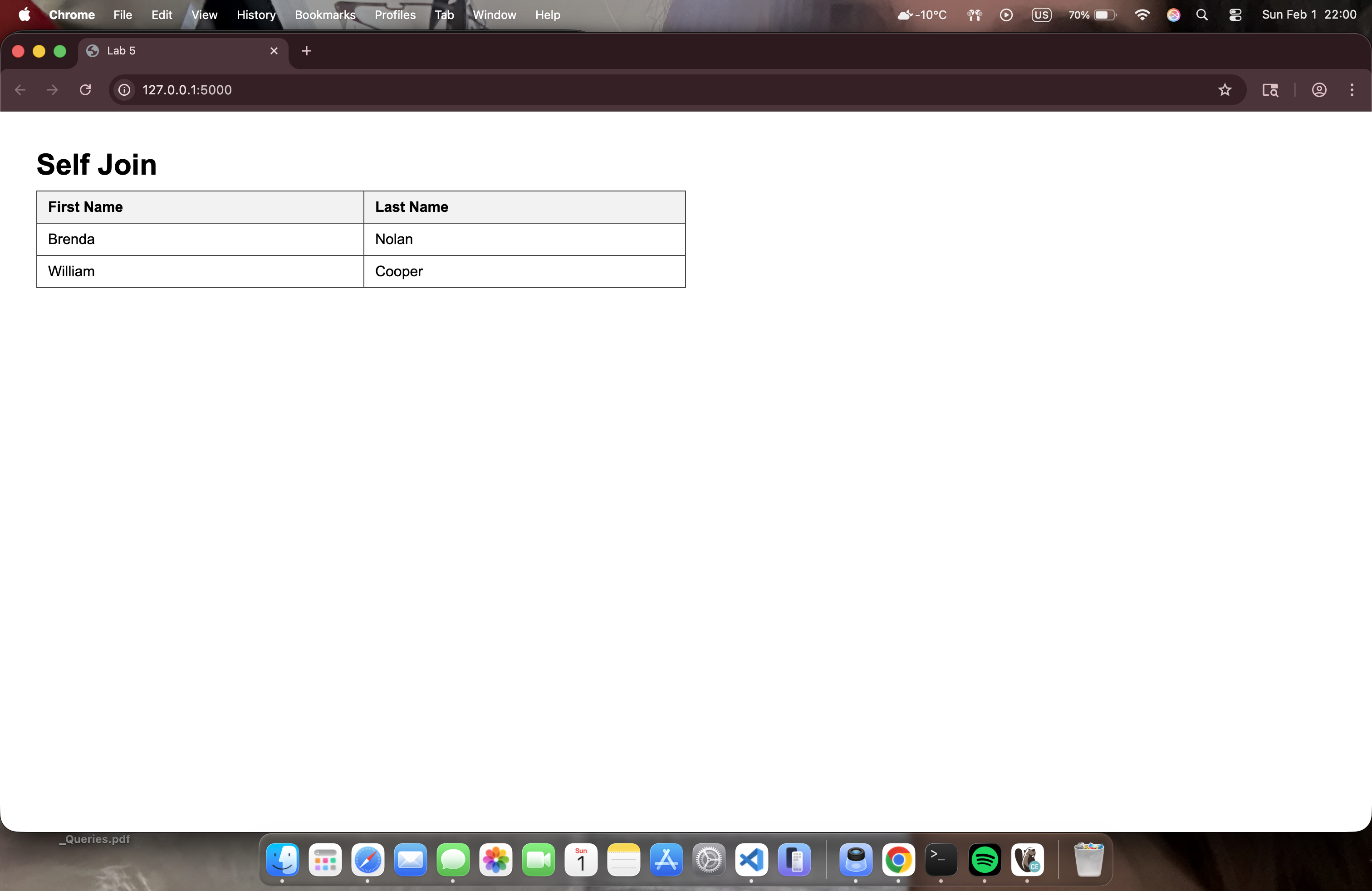

Open the link and you should see the list of coaches displayed on a web page.
